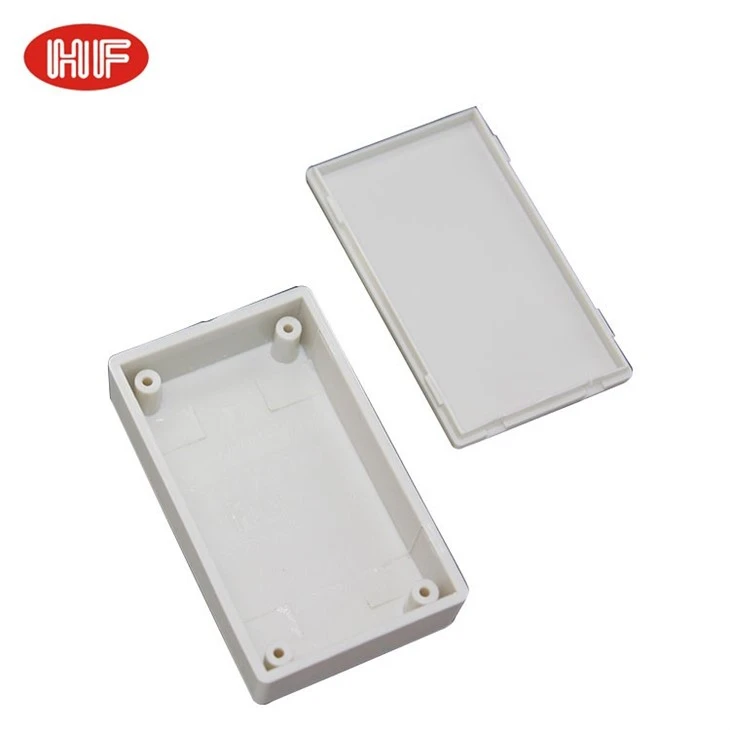

| Product Name | Plastic Enclosure |
| Model | HF-N-5 |
| Material | ABS |
| Colour | Light Gray or Customize |
| Size | 68*40*20MM |
| Application | Electronic Projects |
| Customization | Cutout holes, silkscreen print etc |
| Surface Treatment | Surface Painting, Logo Printed or custom |
Core material characteristics
Customized modified ABS resin substrate:
▶ Basic performance: tensile strength ≥40MPa, impact strength 8kJ/m² (-20℃ environmental test)
▶ Customizable enhancement scheme:
• Flame retardant grade: UL94 V-0/V-2 (compliant with IEC 60695-11-10 standard)
• Antistatic treatment: surface resistance 10^6-10^9Ω (ESD protection applicable)
• Environmental adaptability: optional UV stabilizer (outdoor weather-resistant type), antibacterial additives (medical grade)
Structural design advantages
Precision molding process:
One-piece injection molding tolerance control ±0.15mm (ISO 2768-m standard)
Built-in PCB positioning column and card slot structure, compatible with 2-8 layer board installation
Heat dissipation optimization: honeycomb ventilation grid (opening rate 15%-30% adjustable)
Human-computer interaction design:
Quick-release cover (opening and closing life ≥5000 times)
Embedded sealing strip groove (optional silicone/EPDM material)
Standard preset hole position: Φ3-Φ12mm (in accordance with DIN 3015 conduit interface specification)
Typical application scenarios
Industrial control: PLC junction box, sensor protection housing
New energy field: photovoltaic inverter terminal box, charging pile control module
Communication equipment: 5G micro base station RF unit protective cover
Medical equipment: electromagnetic shielding shell of handheld diagnostic equipment
Customized service dimensions
| Customization level | Optional parameter range | Technical Standards |
| Structural design | Size range: Customized Hole positioning: ±0.2mm laser marking accuracy |
IEC 61969-2 |
| Finishing | Texture: leather grain/matte/gloss Logo: laser engraving/UV printing (≤0.2mm line width) |
ISO 9001 |
| Function expansion | Electromagnetic shielding: 30dB@1GHz (plating or filling solution) Heat conductivity enhancement: embedded aluminum-based heat dissipation lining |
MIL-STD-188-125 |
Quality control system
Full-process traceability system: MES system integrated production batch management
Testing items: three-dimensional measurement (key dimension CPK≥1.33), high and low temperature cycle test (-40℃~60℃), salt spray test (48h/96h optional)
Related Types:
Company profile:
Q:Do you have MOQ limit for customization?
A:No,we provide sample service and mass production service at the same time.
Q:What is the regular lead time?
A:Sample:5-7 working days,Mass prodution:15-20 working days
Q:How to start the order?
A:Inquiry→Requirement Detail→Quotation→Drawing Confirmation→Manufacture
Q:What can we do for you?
A:We are specializing in aluminum enclosure and customized metal part.
About the enclosure,we have hundred of extruded mold with different size and structure.
So you will have many different options from us about the enclosure and we are experienced with this field,so communicating about the fixing methods of internal components, the opening requirements of connectors, etc., are at our command.
